| Brand Name : | Phoenix Equipment |
| Price : | $2,850.00/sets 1-2 sets |




Model | PM1325 | ||
Bed Material | Welded large steel pipe | ||
weight | 1000KGS | ||
Table size | 1300*2500mm | ||
Work area | 1300*2500*200mm | ||
Table Surface | T-slot table | ||
Engraving accuracy | 0.02-0.03mm | ||
Repeatability | ±0.01mm | ||
XYZ transmission | XY helical rack drive, Z screw drive | ||
Guide | HIWIN20 square rail | ||
Working speed | 18000mm/min | ||
Spindle power | JST 3.2KW water cooling | ||
Frequency converter | 3.7KW FULING | ||
Spindle speed | 0-24000rmp | ||
Motor | Leadshine 860 step motor | ||
Operating Voltage | AC380V220V50Hz | ||

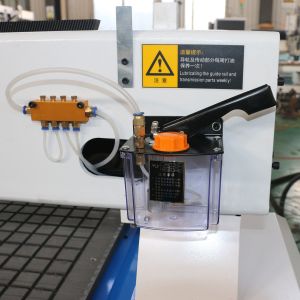

Oil System | Manal oil system | ||
Run command | G code | ||
Operating system | NC studio | ||
Support software | Type 3,Artcam,JD, | ||
Packing size | 3200x1700x960mm | ||

Product Name | 3D CNC Router Machine for Wood Cutting Engraving woodworking
industry |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Wood, aluminum board, plastic, density board, wave board, PVC,
acrylic, crystal, light marble, and other nonmetal materials and
light metal materials. |
|
